Electrical Machine Trainer System

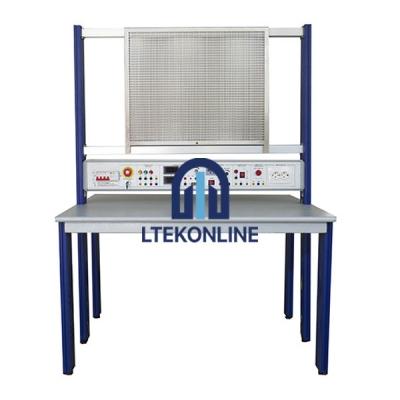

The machine system shall be designed for electrical teaching laboratories. The unit shall consist of a steel or wooden cabinet with working surface and storage facilities for all modules associated with the system. A mounting rack fixed on the top surface of the supply console shall be provided for vertical mounting of the component modules in use. Power for the operation of the module shall be obtained from a plug-in modular typed supply console also mounted on the surface of the cabinet. This trainer include various types of DC motors, AC motors, through experiments students can be familiar with DC motor features, AC motor features, master its control principles and control mode, it will cultivate students' technical skills and knowledge. The trainer is suitable for vocational school students, technical schools students, colleges students who major in electrical technology, electronics technology,mechatronics technology etc.

The supply console shall provide the following features:-

Output voltage of 0 - 415V AC  3 phase 10A variable supply.

Instrument to monitor output voltage and current.

Pilot light to indicate live supply.

Push button control for all output.

Emergency stop mushroom-head push button is incorporated in the unit.

Input 415V AC 50Hz.

AC variable output of 0 - 240V / 5A single phase.

DC variable output of 0 - 240V / 5A stabilized and regulated.
