Electro Mechanical Control System Trainer
Description & Specification
Electro Mechanical Control System Trainer
Categories:
Electrical Training Equipment Products
Technical Specifications

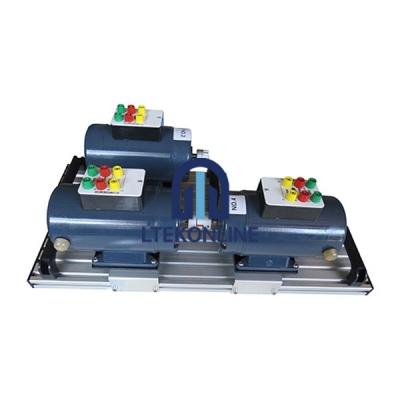

This trainer include various types of DC motors, through experiments, students can be familiar with DC
motor features, master its control principles and control mode, it will cultivate students' technical skills
and knowledge.
Training workbench has high safety system.
Equipped with motors, students can make combination, and finish many training contents.
Training workbench use aluminum column structure frame, it include meter box and power box to test and measure technical parameter, it is easy to use and it is not easy to be broken.
Technical Parameter:
Whole capacity:<2.0KVA
Input power: single phase, three wires, 220V,50Hz
Work environment:
Environment temperature: -10ºC~+40ºC
Relative humidity: <85%(25ºC)
Dimension: 1600mm×800mm×1300mm
Weight: <250kg
Product consist of:
Power control panel:
Power control panel use aluminum structure metal panel, all close type
Boxes structure
Training workbench
Training workbench use anti fire board surface, it is very sound and not easy to be broken, it has a
beautiful outlook.
Power control panel
Control panel has one point type voltage meter, one current meter, one power meter, one non power meter.
It equipped with indicator, Europe power plug output, safety output sockets.
Single phase, three wire power input, it has been tested by leakage breaker control, it has emergency stop button, you can cut off electricity when emergency.
Inner AC current and DC wound power, with short circuit protection function.
