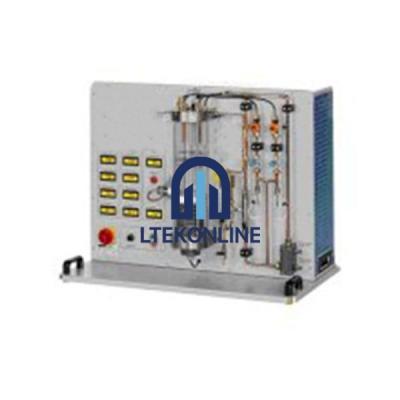

Heat Transfer in Agitated Vessel
Description & Specification
Heat Transfer in Agitated Vessel
Categories:
Thermal Training Equipment
Technical Specifications
Objective:
To Make A Comparative Study Of Heat Transfer Through Jacket & Coil In An Agitated Vessel
To Determine The Overall Heat Transfer Co-Efficient For Various Degree Of Agitation.
Utilities Required:
Water Supply 5 Lit/Min (Approx.)
Electricity Supply: 1 Phase, 220 V Ac, 5 Kw
Technical Details:
System : Steam To Water
Vessel : Material Stainless Steel Fitted With 4 Baffles
Dia. 250, Depth 350 Mm (Approx.)
Jacket : Width 25 Mm. Insulated With Ceramic Wool And Cladded
With Aluminium Foil
Condensate Measurement: Measuring Cylinder & Stopwatch
Water Flow Measurement: Rota Meter
Steam Generator: Made Of Stainless Steel Fitted With Level Indicator, Pressure Gauge, Safety Valve, Drain And Insulated With Ceramic Wool & Cladding With Aluminium Foil
Heaters: Nichrome Wire Heater (2 Nos.)
Helical Coil: Material Copper, Od 16mm, Id 13mm
Agitator: Stainless Steel Impeller Fitted On A Shaft Coupled To A Variable
Speed Motor And Drive
Control Panel Comprising Of
Digital Temp. Indicator: 0-199.90c, With Multi-Channel Switch
Temperature Sensors: Rtd Pt-100 Type
Digital Temp. Controller: 0-199.90c (For Steam Generator)
Rpm Indicator: Standard Makes Digital, Non-Contact Type
With Standard Make On/Off Switch, Mains Indicator Etc.
