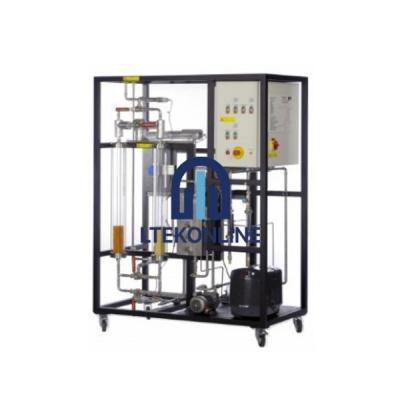

Shell & Tube Heat Exchanger

Product Code LTEKCTLB-TTE60-0076

Description & Specification

Shell & Tube Heat Exchanger

Enquire Now Print Page

Categories: Thermal Training Equipment

Tags: Shell & Tube Heat Exchanger

Technical Specifications

Objective: To determine overall heat transfer co-efficient

Utilities Required:

Table For Set-Up Support, control panel, instruction manual in English and other accessories

Water supply and drain, Electricity Supply: 1 Phase, 220 V Ac, 2 Amp

Technical Details:

System: Water To Water (1 – 2 Shell & Tube Type)

Shell : Material Stainless Steel Insulated With Ceramic Wool And

Tube: Od 16mm Approx. , Length 500mm (24 Nos )

Hot Water Tank: Made Of Stainless Steel Insulated With Ceramic Fibre Wool

Hot Water Circulation : Magnetic Pump

Cladded With Aluminum Foil

Dia 220 Mm, Length 500 Mm (Approx. )

25% Cut Baffles At 100 Mm Distance 4 Nos

Water Flow Measurement: Rota Meters (2nos ) One Each For Cold & Hot Fluid

Heaters: Nichrome Wire Heater (2 Nos )

Control Panel Comprising Of

Digital Temp Indicator: 0-199 90c, With Multi-Channel Switch

Temperature Sensors: Rtd Pt-100 Type

Digital Temp Controller: 0-199 90c, (For Hot Water Tank).

Why choose LTekOnline

Trusted Shell & Tube Heat Exchanger Manufacturer & Supplier

LTekOnline are the manufacturers of Shell & Tube Heat Exchanger used to demonstrate engineering principles in Engineering Colleges, Engineering Schools, and Thermal Training Equipment for Engineering Teaching Lab in Universities. We supply Shell & Tube Heat Exchanger to TVET institutes, vocational training centres, polytechnics and research labs across more than 90 countries, with quality testing technology, comprehensive operation manuals and full after-sales support.
