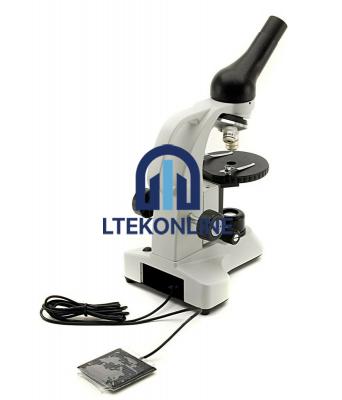

Tenders Description & Specification for Solar LED Monocular Student Microscope
Solar LED Monocular Student Microscope Lab Equipment Suppliers in India
Nosepiece: Triple, rotating in both directions with objective click locking system
Head: Monocular, 360° rotating, with 45° inclined eyepiece tube
Objectives: Achromatic 4x, 10x, 40x (telescopic)
Eyepiece: WF10x/16mm
Stage: Movable, 360° rotating, dia. 90mm, with sample clips
Focusing: Separate coarse and fine control knobs, with focus tension adjustment
Illuminator: White LED, with brightness control, powered by solar panel
Solar Battery Specifications:
Battery: Polymer Lithium-Ion
Input Voltage: 5Vdc - Connect via USB/micro-USB cable to an external USB power supply (not included)
Working Temperature: -10°C ~ +55°C
Output: 5, 5Vdc 1A
Capacity: 2600 mAh
Charging time: About 5 hours
Battery operating time: Over 6 hours at medium intensity (X-LED3)
Solar Panel Output: 80mA (at 1000W/m2 light)
Microscope School Lab Equipment Suppliers in India
Ltekonline are the manufacturers of Solar LED Monocular Student Microscope used to demonstrate engineering principles in Engineering Colleges, Engineering Schools and School Microscope for Engineering Teaching Lab in Universities
Categories: School Microscope
