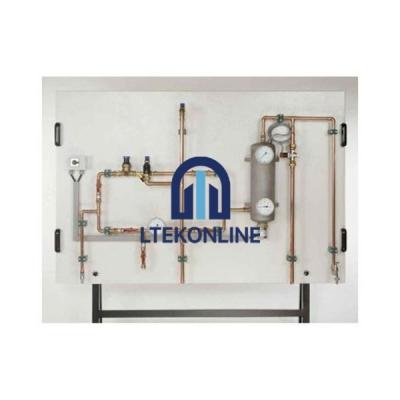

Safety Devices Training Panel

Product Code LTEKCTLB-TTE60-00108

Description & Specification

Safety Devices Training Panel

Learning Objectives / Experiments:

Function and layout of a system of safety devices

Function of a thermal discharge safety device

Function of safety valves

Specification:

Thermal discharge safety device

1 system of safety devices with pressure reducing valve, shut-off valve, test connections and non-return valve, manometer connection and safety valve

2 blow-off lines, 1 filler pipe, 1 drain

Trainer on heating systems and plumbing

Pressure vessel

Threaded heater element with switch cabinet

2 spring tube manometers

1 bimetallic dial thermometer.

Technical Data:

Thermal discharge safety device: actuated at 95°C

Setting range of pressure reducing valve: 1,5…6bar

Pressure vessel made of steel – volume: approx. 5L – max. operating pressure: 7,8bar

Threaded heater element – power: 3kW – protective system: IP 65

Measuring ranges

Pressure: 0…10bar

Temperature: 0…120°C

Required for Operation 230V, 50/60Hz, 1 phase Water connection, drain

Dimensions and Weight LxWxH: 1660x700x1850mm

Weight: approx. 105kg.
